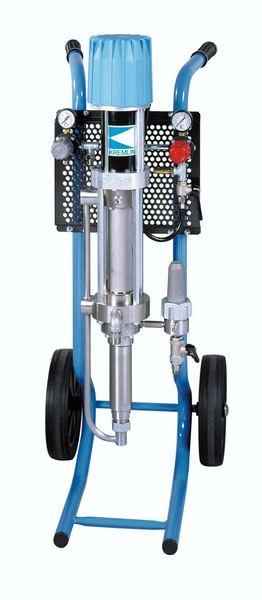

AIRMIX® 20:50 FLOWMAX PUMP - Bellow Superlife

FLOWMAX® AIRMIX® 20.50F Pump - Stainless steel: Universal AIRMIX® pump for use with all materials, including water-based and high solids

Specifications

Compression ratio 20/1
Fluid volume per cycle (cm3) 100
Number of cycles per litre of products 10
Fluid Output at 30 cycles/mn (l/mn) 3
Free flow rate (L/mn) 6
Air consumption (m3/h) at 30 cycles/mn at 4 bar 21.6
Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 120
Maximum Fluid Temperature (°C) 50
Sound level (dBA) 76
Sealing packing - Bellows Polyethylene
Sealing packing - Upper and lower GT Polyethylene
Weight (kg) - wall-mounted 27
Wetted parts Stainless steel
Height (cm) 97.5
Width (cm) 47
Depth (cm) 27
