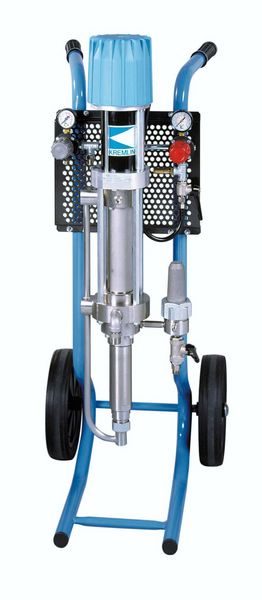

FLOWMAX® AIRMIX® 20.25 F Pump - Stainless steel: Universal AIRMIX® pump for use with all materials, including water-based and high solids.
Specifications
Compression ratio 20/1
Fluid volume per cycle (cm3) 50
Number of cycles per litre of products 20
Fluid Output at 30 cycles/mn (l/mn) 1.5
Free flow rate (L/mn) 3
Air consumption (m3/h) at 30 cycles/mn at 4 bar 10.8
Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 120
Maximum Fluid Temperature (°C) 50
Sound level (dBA) 80
Sealing packing - Bellows Polyethylene
Sealing packing - Upper and lower GT Polyethylene
Weight (kg) - wall-mounted 22
Wetted parts Stainless steel
Height (cm) 99.1
Width (cm) 48.3
Depth (cm) 28
