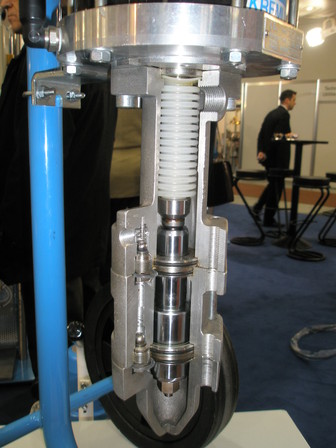

FLOWMAX® AIRMIX® 17.A2 Pump: Unique design with external valves for an easy maintenance. Flowmax® technology ensures total sealing. Quick inversion of this pump allows for a perfectly stable fan shape at the gun.
Performance, extended lifetime, reliability.
Specifications
Compression ratio 17/1
Fluid volume per cycle (cm3) 60
Number of cycles per litre of products 16
Fluid Output at 30 cycles/mn (l/mn) 1.8
Free flow rate (L/mn) 3.6
Air consumption (m3/h) at 30 cycles/mn at 4 bar 11
Maximum air inlet pressure (bar) 6
Maximum fluid pressure (bar) 100
Maximum Fluid Temperature (°C) 50
Sound level (dBA) 74
Sealing packing - Bellows Polyethylene
Sealing packing - Upper and lower GT polyethylene
Weight (kg) - wall-mounted 20
Wetted parts Stainless steel
Height (cm) 62.2
Width (cm) 33
Depth (cm) 21
