MVX

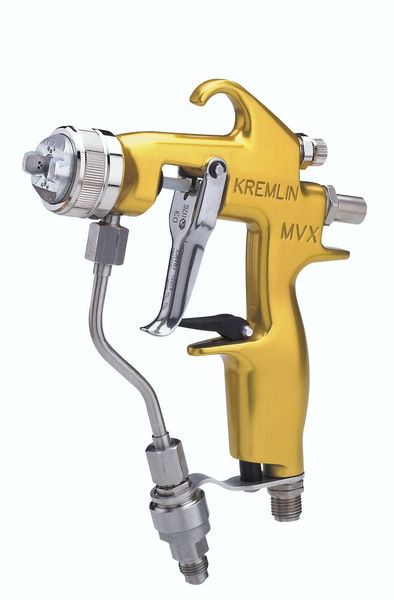

MVX Gun: It has superior ergonomic design and uses the highest quality components for long lasting reliable performance. Most importantly, it opens a whole new world to users by putting in the hands of an Airmix® sprayer the ability to significantly vary the pattern without changing the tip while using minimal compressed air.

Specifications

Sprayed materials Polyurethanes, water-based products, High Solids, two-components products, stains, lacquers, varnishes, etc...
Body of the gun Forged aluminum
Fluid Pressure Range (bar) 20 - 200
Maximum air inlet pressure (bar) 6
Recommended atomization air pressure (bar) 0.8 - 3
Fluid output (l/mn) Depends on the tip used
Weight (g) 575
Maximum Fluid Temperature (°C) 50
Air consumption (m3/h) 5 - 7.5
Wetted parts Stainless steel, PTFE
Safety Trigger lock
Filter (fitted on fluid tube) #6 - 85 mesh/ 168µ
